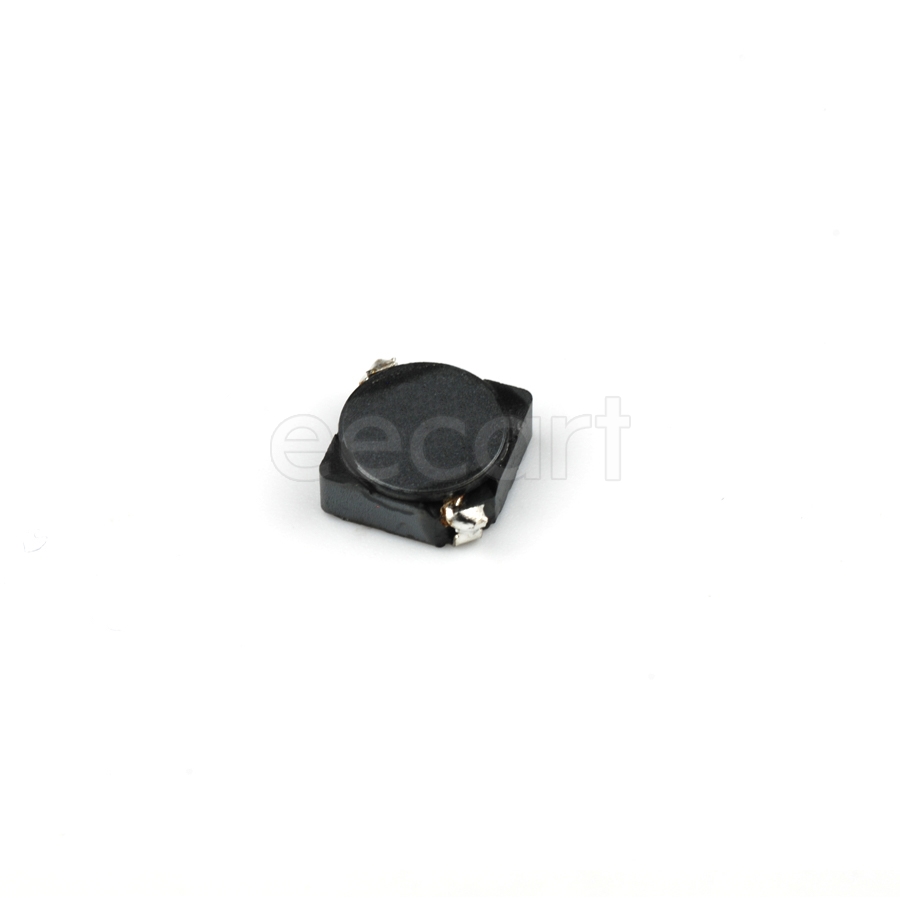

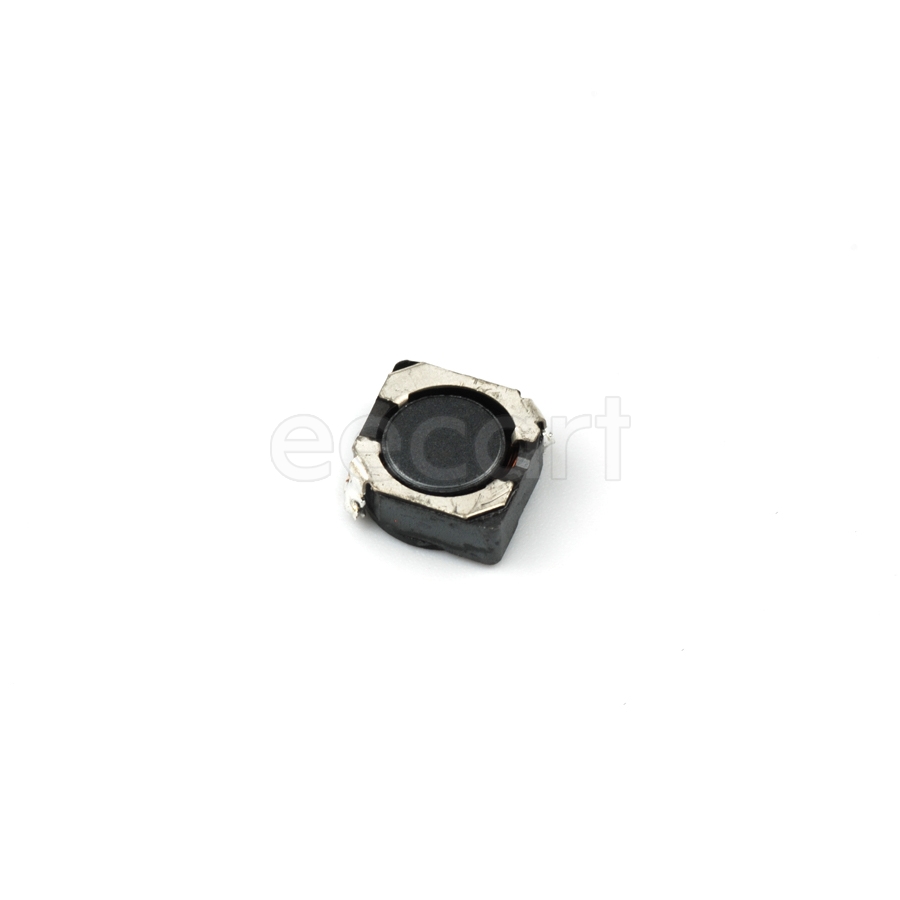

ASPI-0602S-3R0M-T
Manufacturer:
Abracon Corporation
Mfr.Part #:
ASPI-0602S-3R0M-T
Datasheet:
Description:
Fixed Inductors 6.70mmL×6.70mmW×3.00mmH SMD/SMT 3 µH 20 % 3 A 24 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3 mm |
| Length | 6.7 mm |
| Width | 6.7 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Composition(Kit Type) | Wirewound |
| Height | 3 mm |
| Packaging | Reel |
| RoHS | Compliant |
| Type | Wirewound |
| Current Rating | 3 A |
| DC Resistance (DCR) | 24 mΩ |
| Test Frequency | 10 kHz |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Shielding | Shielded |
| Inductance | 3 µH |
| Core Material | Ferrite |
| Max DC Current | 3 A |
Stock: 517
Distributors
pcbx
pcbxUnit Price$0.41891
Ext.Price$0.41891
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.41891 | $0.41891 |
| 10 | $0.34454 | $3.44540 |
| 25 | $0.32299 | $8.07475 |
| 50 | $0.30279 | $15.13950 |
| 100 | $0.28384 | $28.38400 |
| 300 | $0.26559 | $79.67700 |
| 500 | $0.24851 | $124.25500 |
| 1000 | $0.23254 | $232.54000 |
| 3000 | $0.21430 | $642.90000 |
| 5000 | $0.19749 | $987.45000 |
| 10000 | $0.19150 | $1915.00000 |
